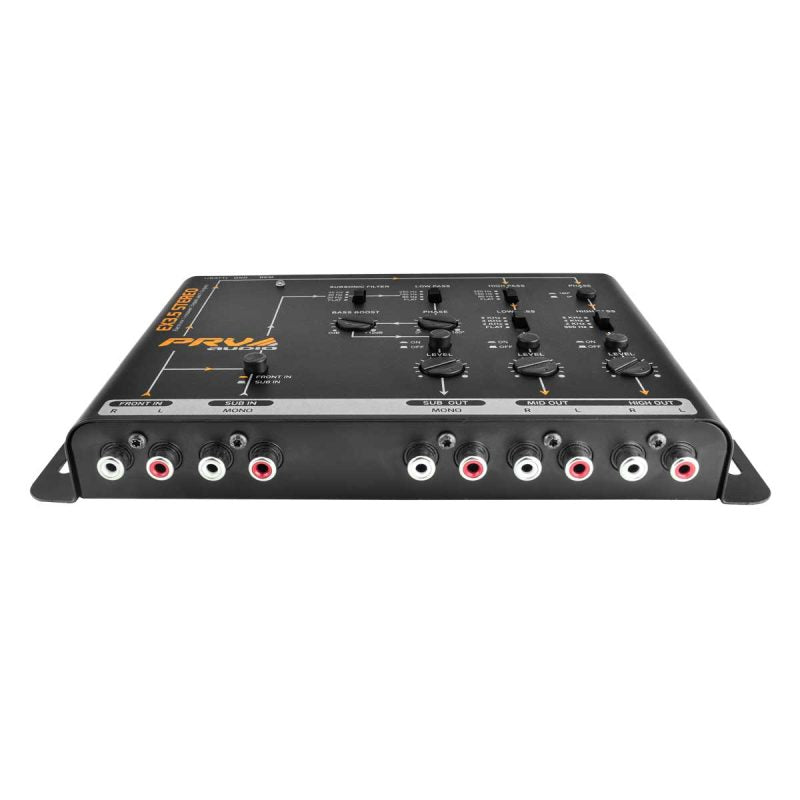

PRV Audio EX3.5 Stereo 9V RMS 2/4 RCA Input Signal 3-Way Electronic Crossover

PRV AUDIO EX3.5 STEREO ELECTRONIC CROSSOVER 3 IN 5 OUT STEREO 9 Volts RMS

Bringing innovation and technology to the automotive sound market, PRV Audio launches the EX3.5 STEREO electronic crossover, giving you the power to customize your sound with a frequency of filter adjustments. Featuring 3-way adjustable HIGH PASS and LOW PASS filters and also output level control on each channel, plus adjustable BASS-BOOST option on the Sub Out channel. Enhancing Your Audio System!

Highlights

• 2/4 RCA Input Signal Options

• 9 Volts RMS maximum output

• Bass Boost 0 to 12dB set at 45Hz

• Quick On/Off button for each channel

• Crossover slope rate: Butterworth 12 db/Octave

Input and output Functions:

• 2/4 RCA inputs for 2 Channels – 1 Stereo and 1 Mono

• 6 RCA outputs for 3 Channels – 2 Stereo and 1 Mono

Crossover Functions:

– High Pass Filter allows adjustment:

• It determines the beginning of the channel operating frequency.

• This filter allows the amplifier to work with many different applications such as: Woofer / Midbass / Midrange / Compression Driver components allows the elimination of low frequency sounds, delivering the right frequency range to avoid damage to the components.

– Low Pass Filter allows adjustment:

• It determines the end of the channel operating frequency.

• This filter allows you to fine tune the amplifier frequency response to match to the components’ frequency response. This ensures that only the lowest frequencies are reproduced by the amplifier.

– Bass Boost allows adjustment:

• Bass Equalizer: provides a “gain attenuation” 0 to + 12dB at center frequency of 45Hz .

– On/Off Buttons:

• This button allows to quick turn On and Off each individual channel.

– Level knobs:

• This control adjusts the output signal on channel; which allows an optimal adjustment to the output signal levels to the amplifiers.

HIGH OUT channel: This Stereo output channel take signal from the FRONT IN stereo inputs

•  Selectable HIGH PASS filter options:  8000Hz / 4000Hz / 2000Hz / 900Hz

• Recommended application: High Frequency Compression Drivers and Super Tweeters.

MID OUT channel: This Stereo output channel take signal from the FRONT IN stereo inputs

•  Selectable HIGH PASS filter options:  250Hz / 150Hz / 80Hz / FLAT ( no filter )

• Selectable LOW PASS filter options: 8000Hz / 4000Hz / 2000Hz / FLAT ( no filter )

• Recommended application: Woofer, Mid Bass and Mid Range Speakers.

SUB OUT channel: This mono output channel take signal from the FRONT IN or SUB IN input.

• Selectable SUBSONIC filter options:  40Hz / 30Hz / 20Hz / FLAT ( no filter )

• Selectable LOW PASS filter options: 250Hz / 150Hz / 80Hz / FLAT ( no filter )

• BASS BOOST gain + 12dB at center frequency of 45Hz and Phase Control

• Recommended application: Woofer and Subwoofers.
